Leather Strap Cutter (Adjustable)
Leather Strap Cutter (Adjustable)
Couldn't load pickup availability
This is an adjustable wooden strap cutter designed for cutting leather straps, belt blanks, and straight strips with consistent width and controlled accuracy.

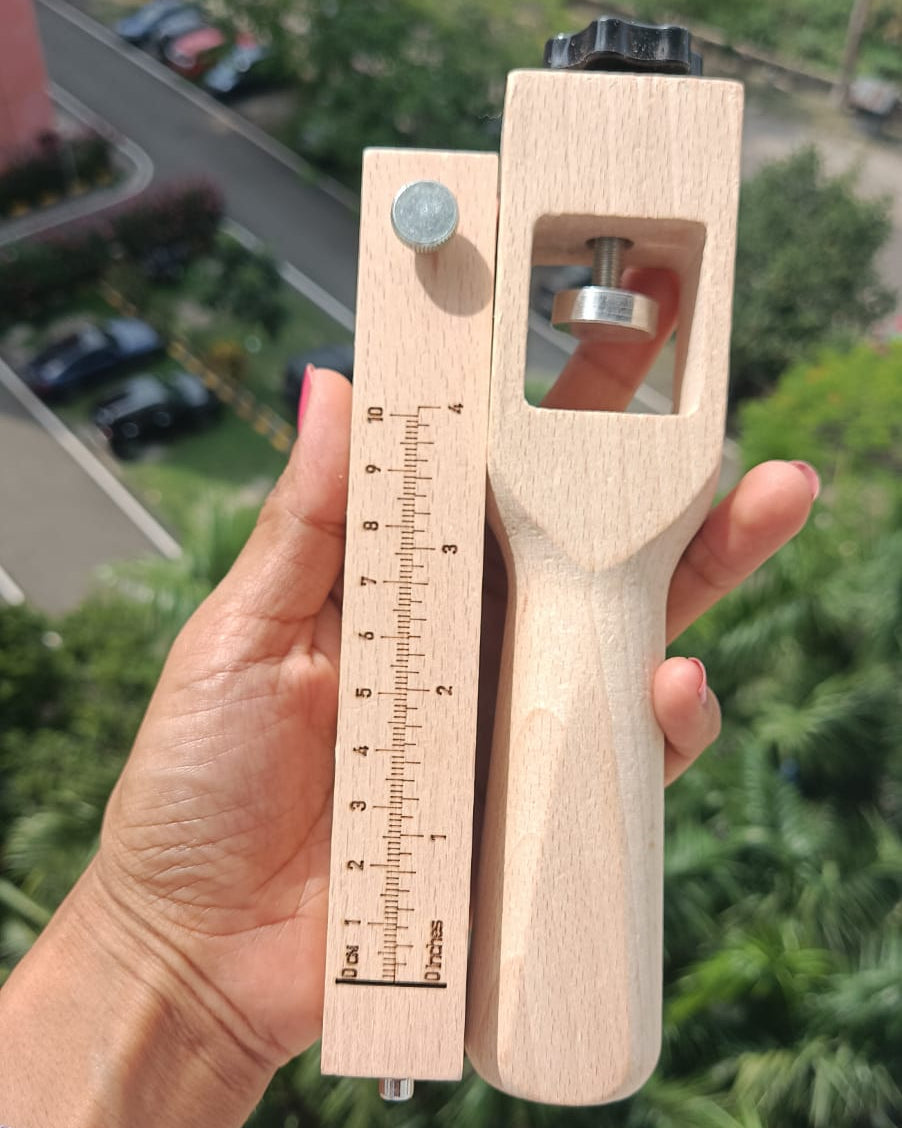

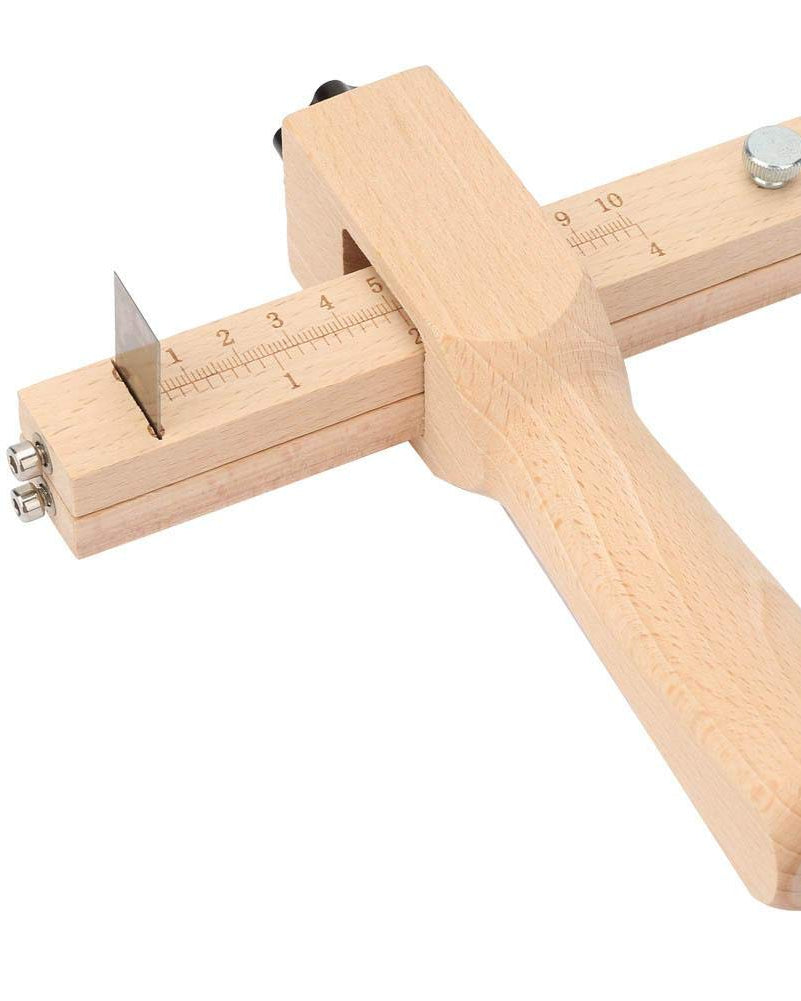

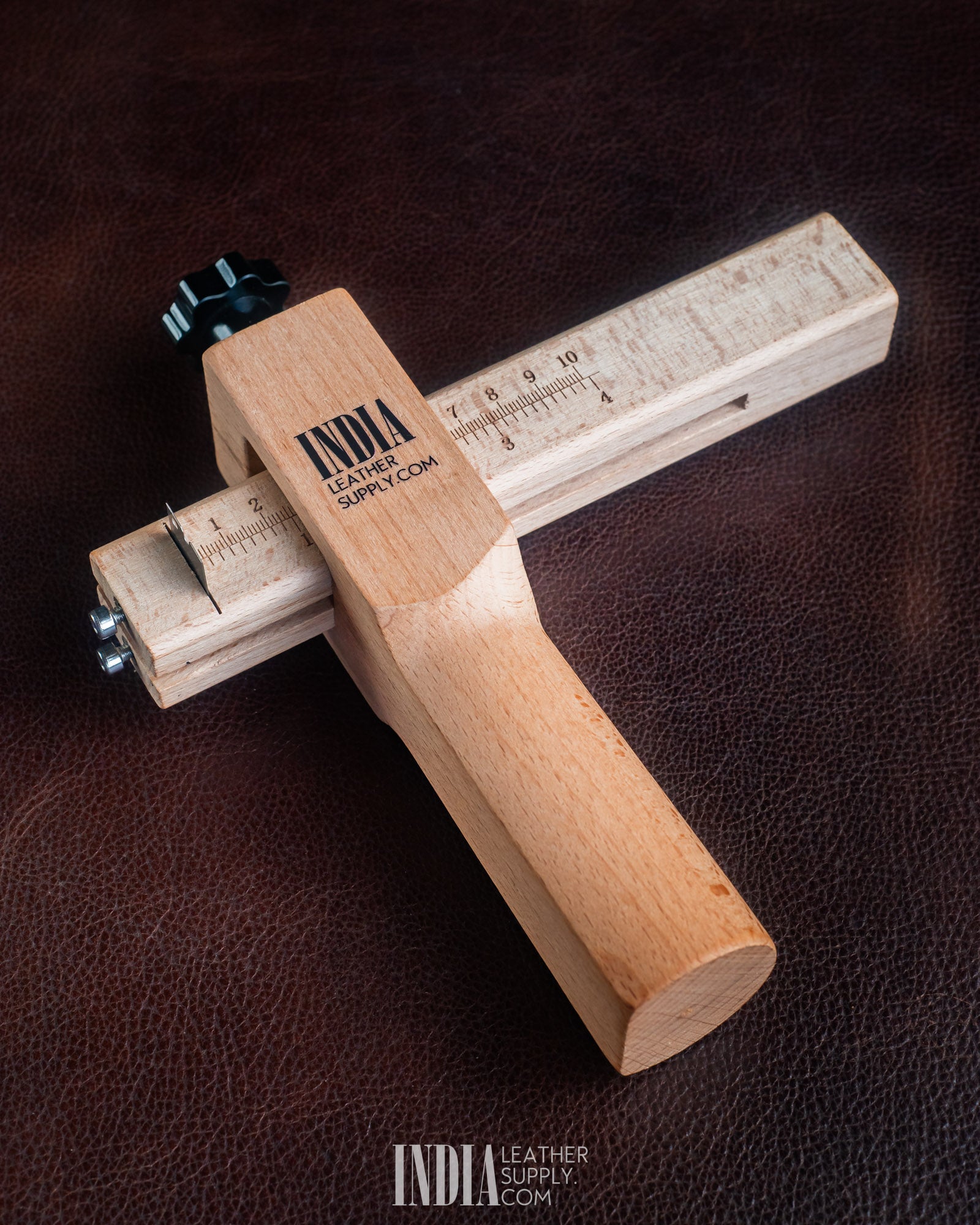

The tool consists of a solid hardwood body with a sliding guide arm and integrated scale. A replaceable blade is mounted within the guide, allowing the leather to be pulled through while maintaining a fixed cutting width.
Unlike freehand cutting with a knife and ruler, this tool establishes a mechanical reference edge, ensuring repeatability and uniformity across multiple cuts.
How It Works

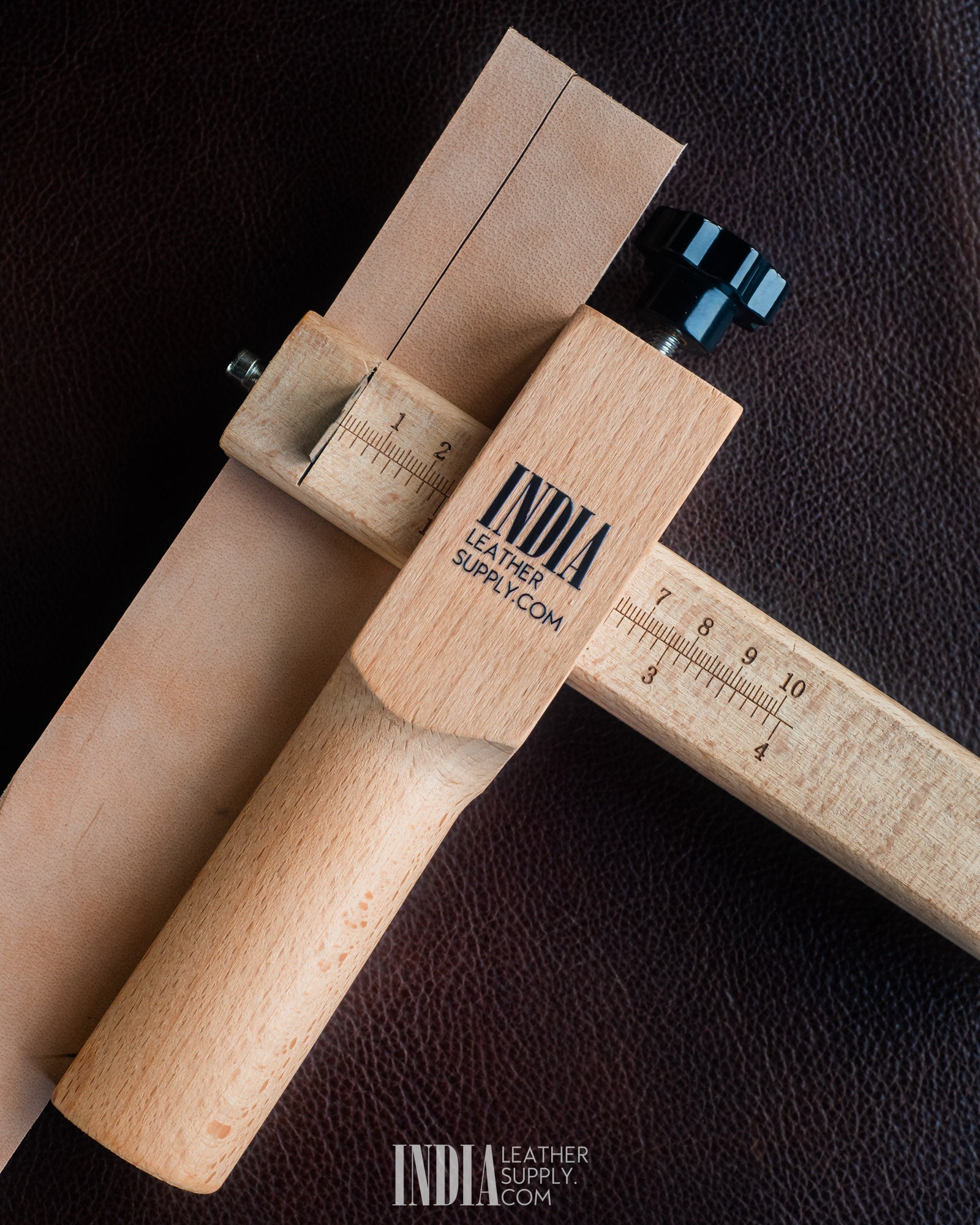

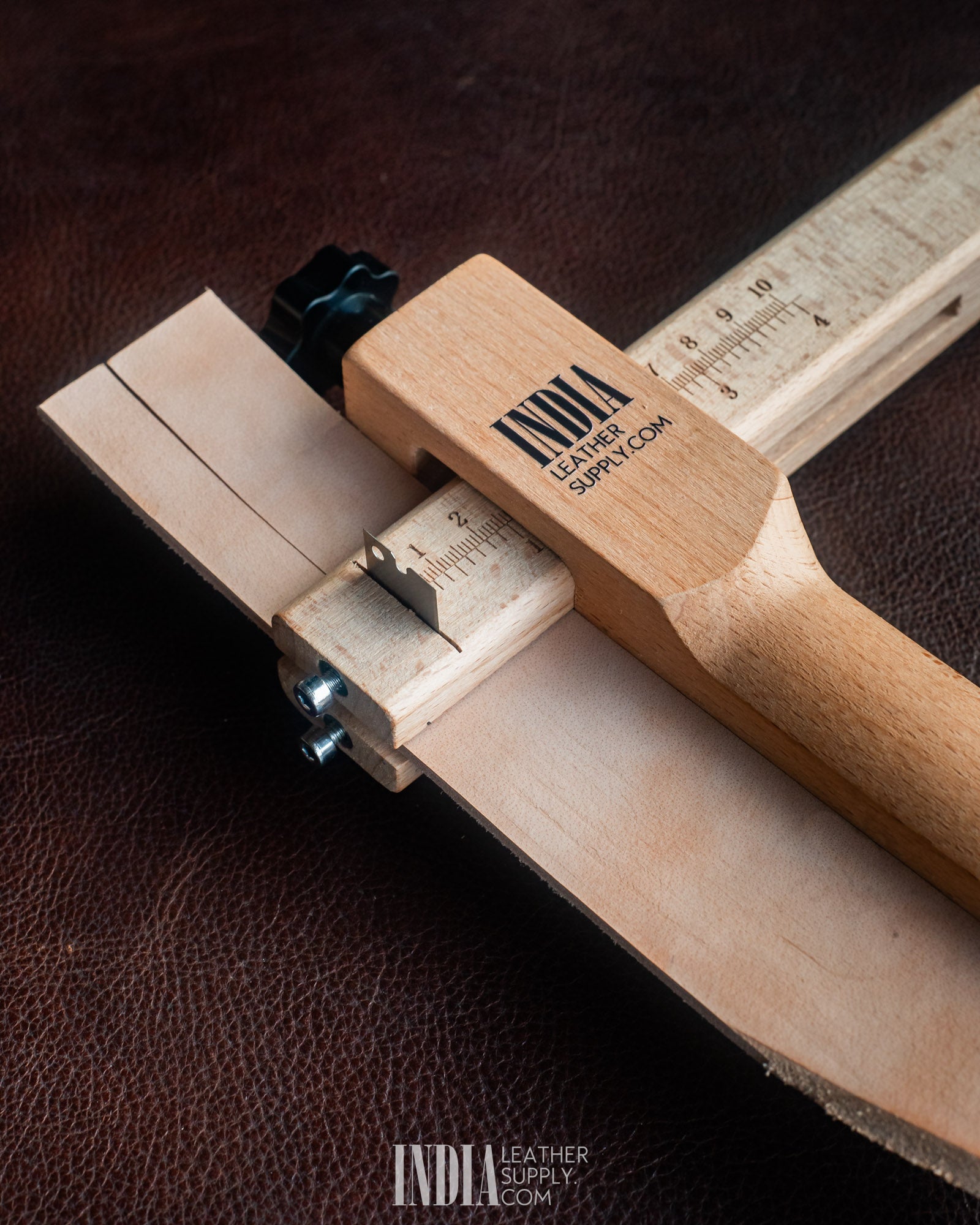

The leather is fed through the tool with one straight edge riding along the guide. The blade trims the material to the preset width as you pull the leather through.
Because the width is mechanically fixed:
- Each strap matches the previous one
- No repeated measuring is required
- Long, continuous cuts remain straight and controlled
Material Compatibility
Best suited for firm, structured leathers (veg-tan, bridle, tooling).
⚠️ Not recommended for thin, soft, or milled leathers, as they may flex and affect accuracy.
Key Features
Marked scale allows accurate setting of strap width with repeatable results.

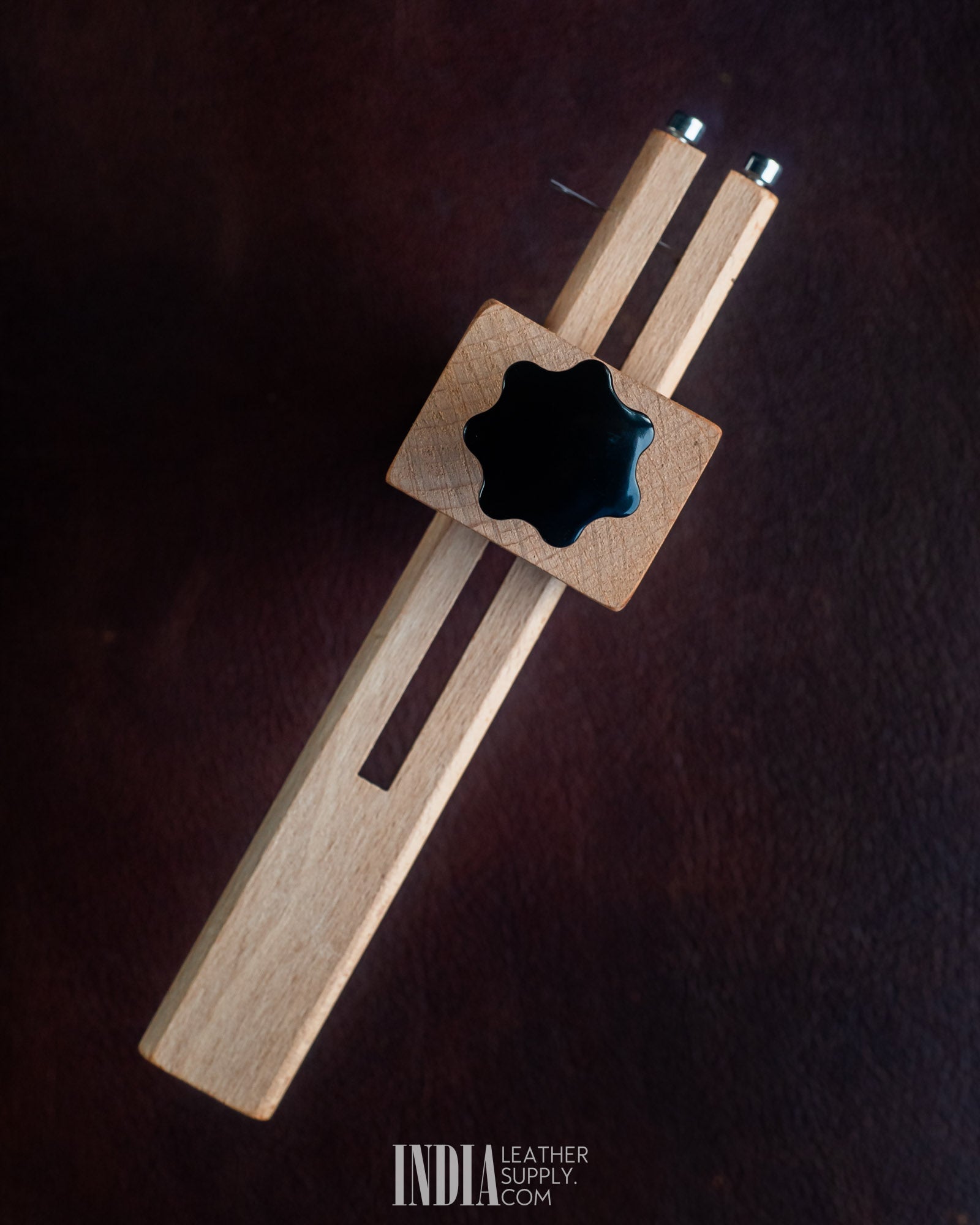

The adjustment knob locks the guide in place to prevent shifting during cutting.
Provides structural stability and is environmentally sustainable.
Uses most standard utility blades for easy maintenance and consistent cutting performance.
Can be used comfortably by both right-handed and left-handed users.
Capable of cutting straps up to 4 inches (≈102 mm) wide.
Setup & Use
- Ensure your leather has a clean, straight starting edge
- Set the desired width using the scale
- Tighten the locking knob firmly
- Insert leather with the straight edge against the guide
- Pull steadily to complete the cut
Critical Usage Notes
⚠️ Blade Sharpness is Essential
A sharp blade is critical for clean, smooth cuts. A dull blade will drag, tear, and deviate from the set width.

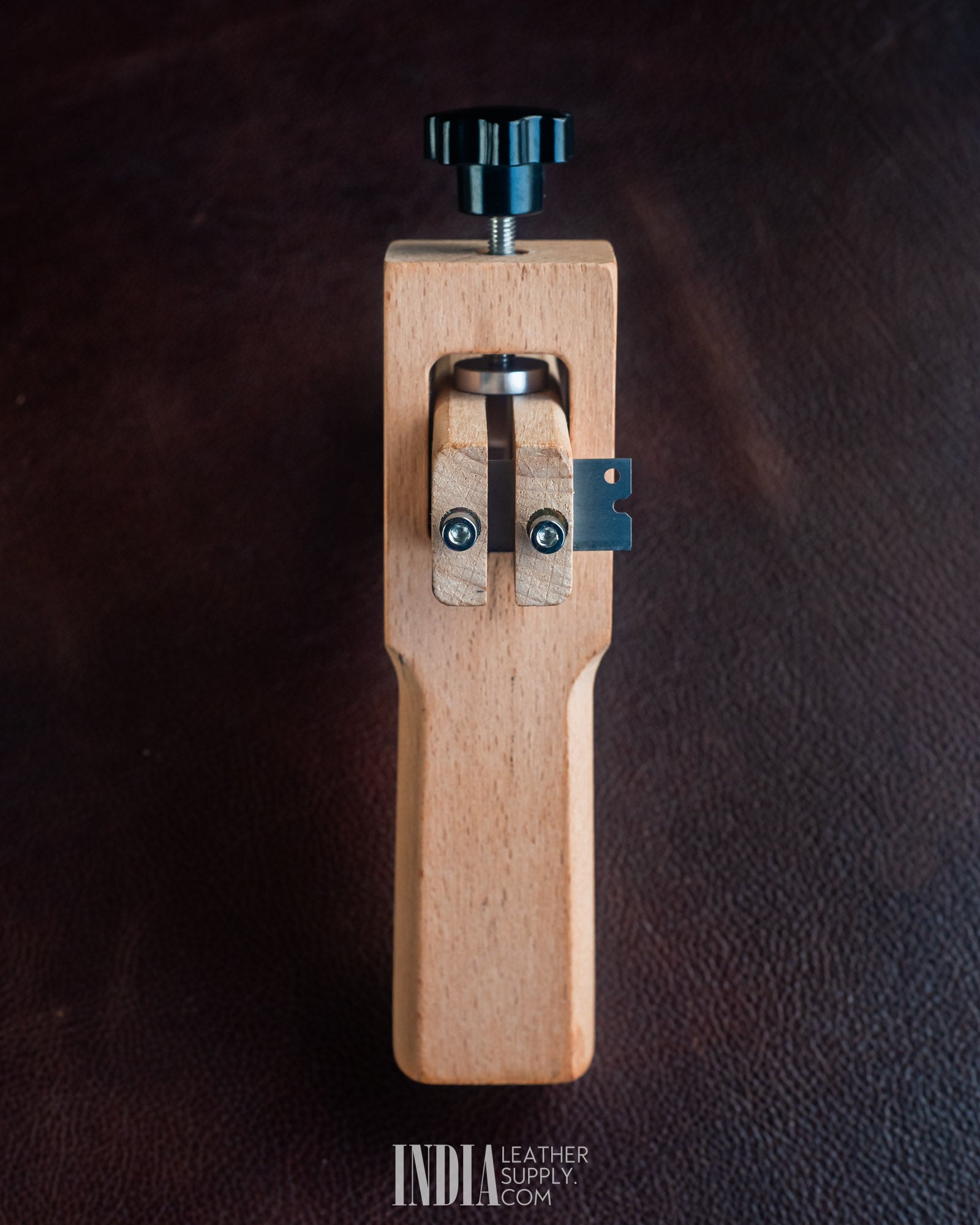

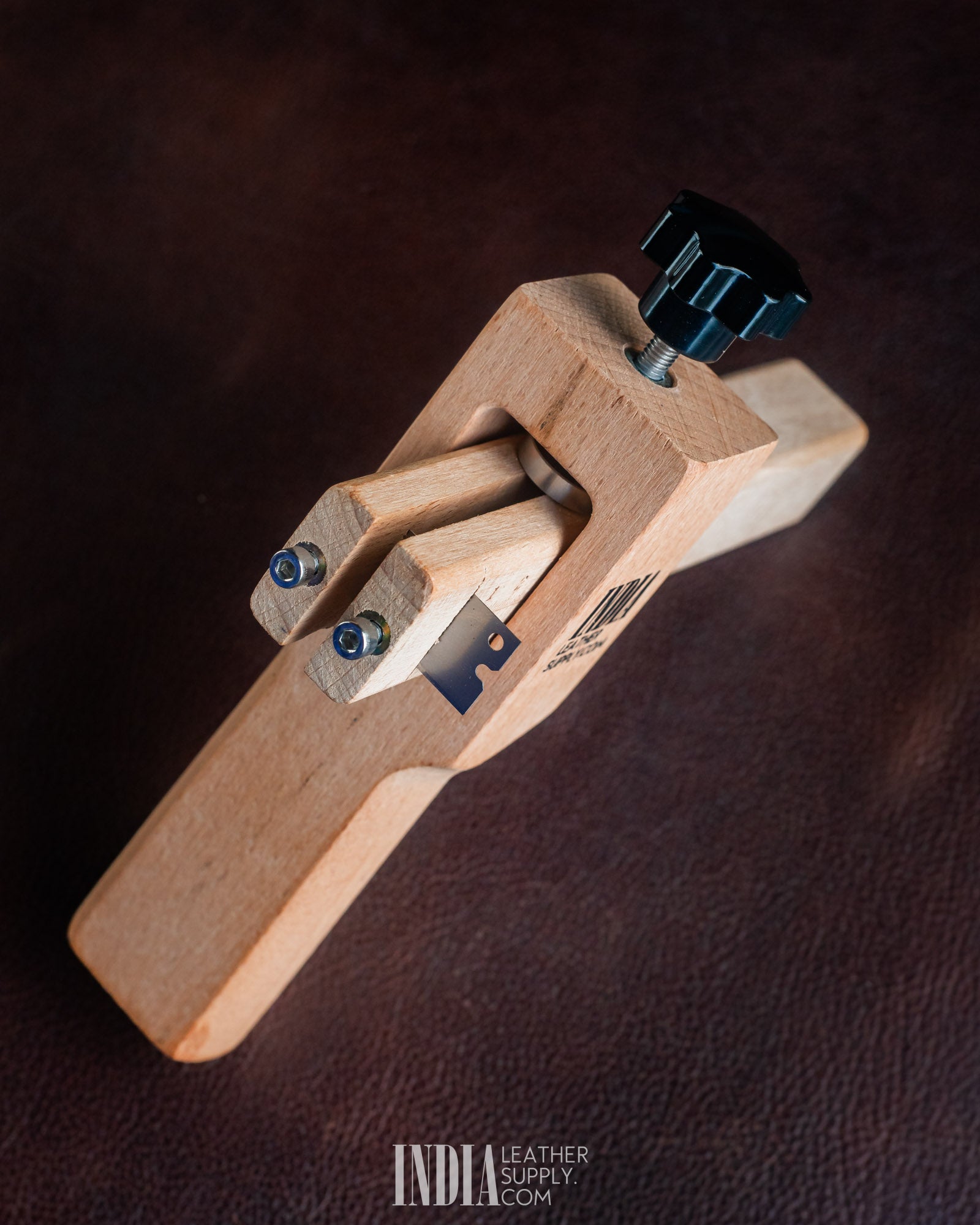

⚠️ Check Blade Position
Ensure the blade does not protrude below the base. A protruding blade can damage your work surface and create a safety hazard.
⚠️ Lock the Setting Properly
If the knob is not tightened sufficiently, the guide may shift during cutting, resulting in wider or inconsistent straps.
⚠️ Do Not Force the Cut
Apply steady, controlled pressure. Excess force reduces accuracy and increases the chance of deviation.
Specifications
| Specification | Detail |
|---|---|
| Max Strap Width | Up to 4 inches (≈102 mm) |
| Material | Solid hardwood body |
| Blade Type | Standard utility blade (replaceable) |
| Adjustment | Sliding scale with locking knob |
| User Orientation | Suitable for both right-handed and left-handed use |

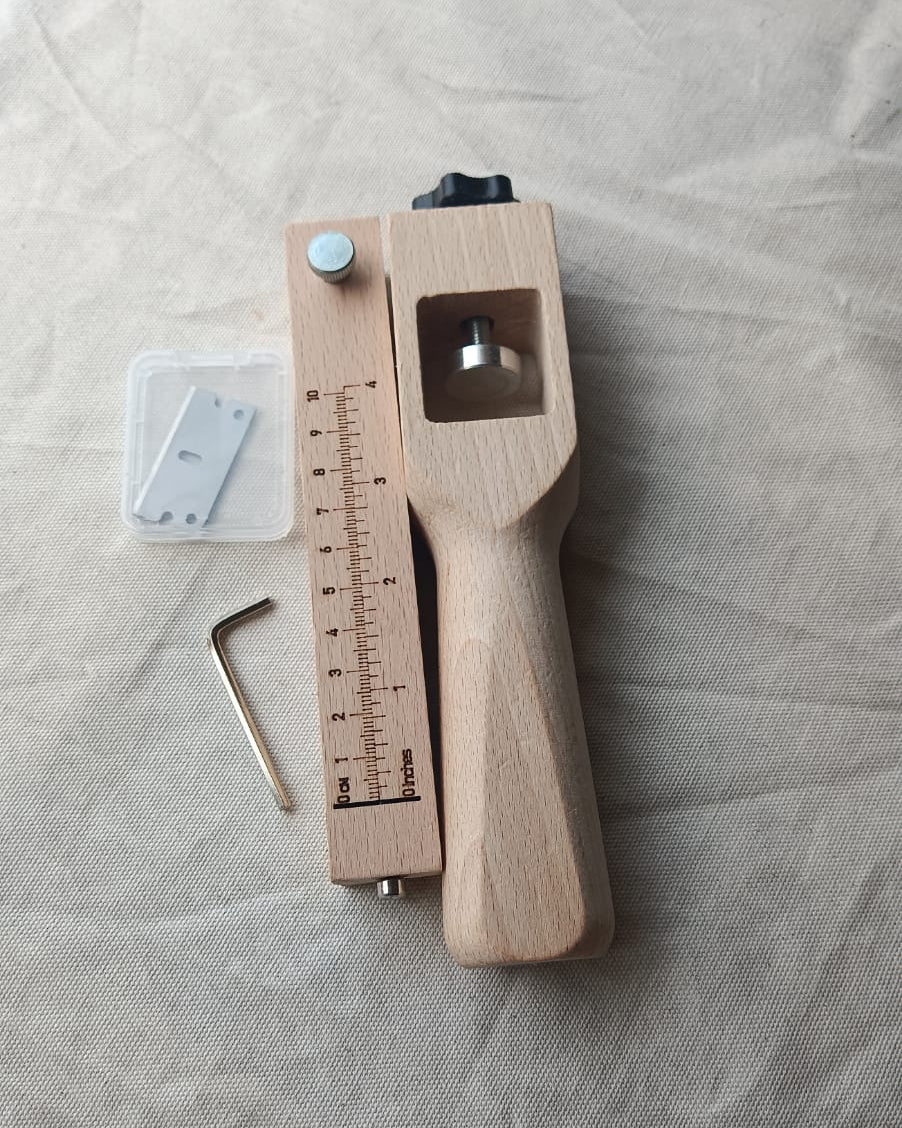

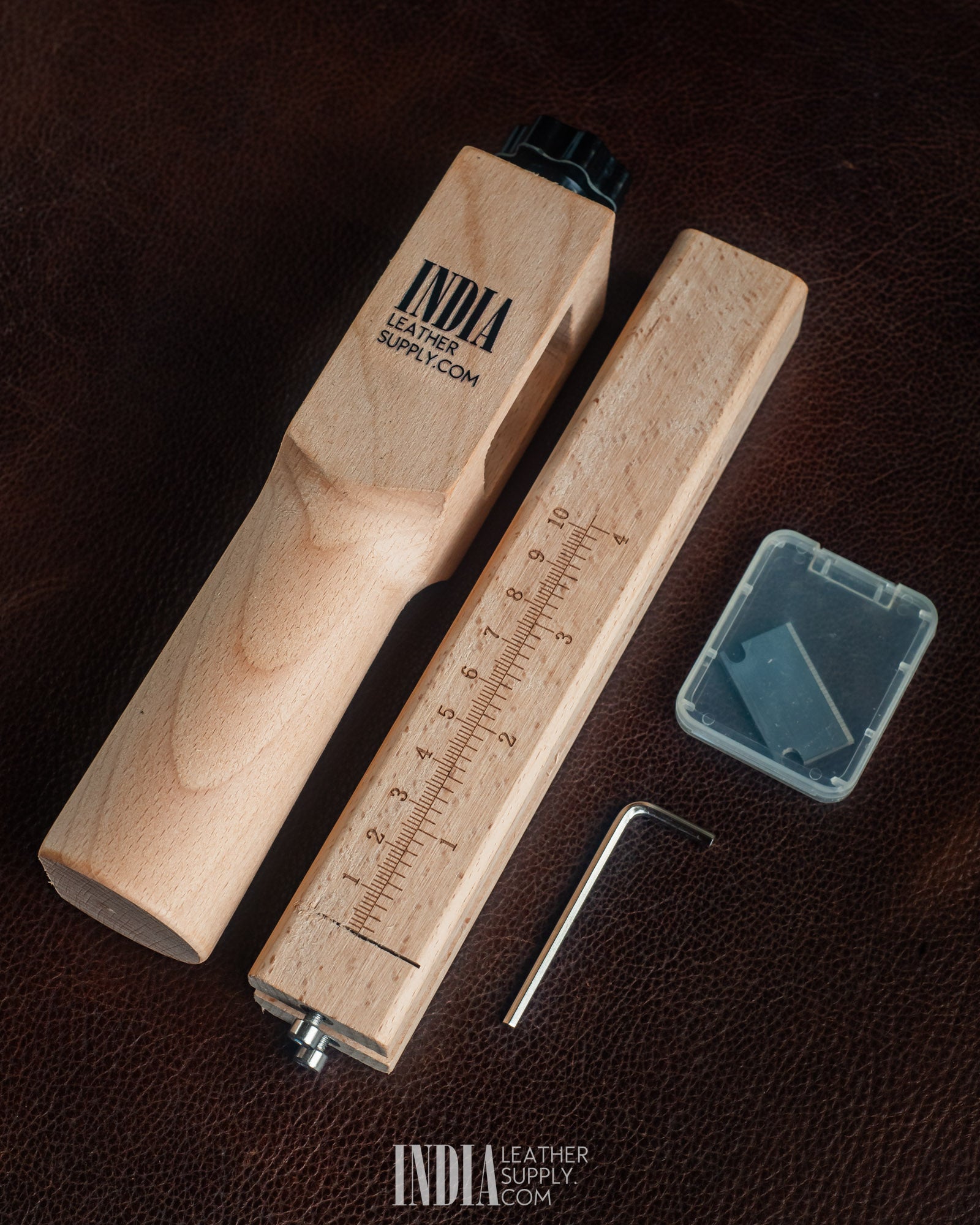

In the Box
- Leather strap cutter (disassembled)
- Hex key for blade adjustment
- Starter blade in a protective blade case
